PVC Insulated Cables

PVC Insulated Cables

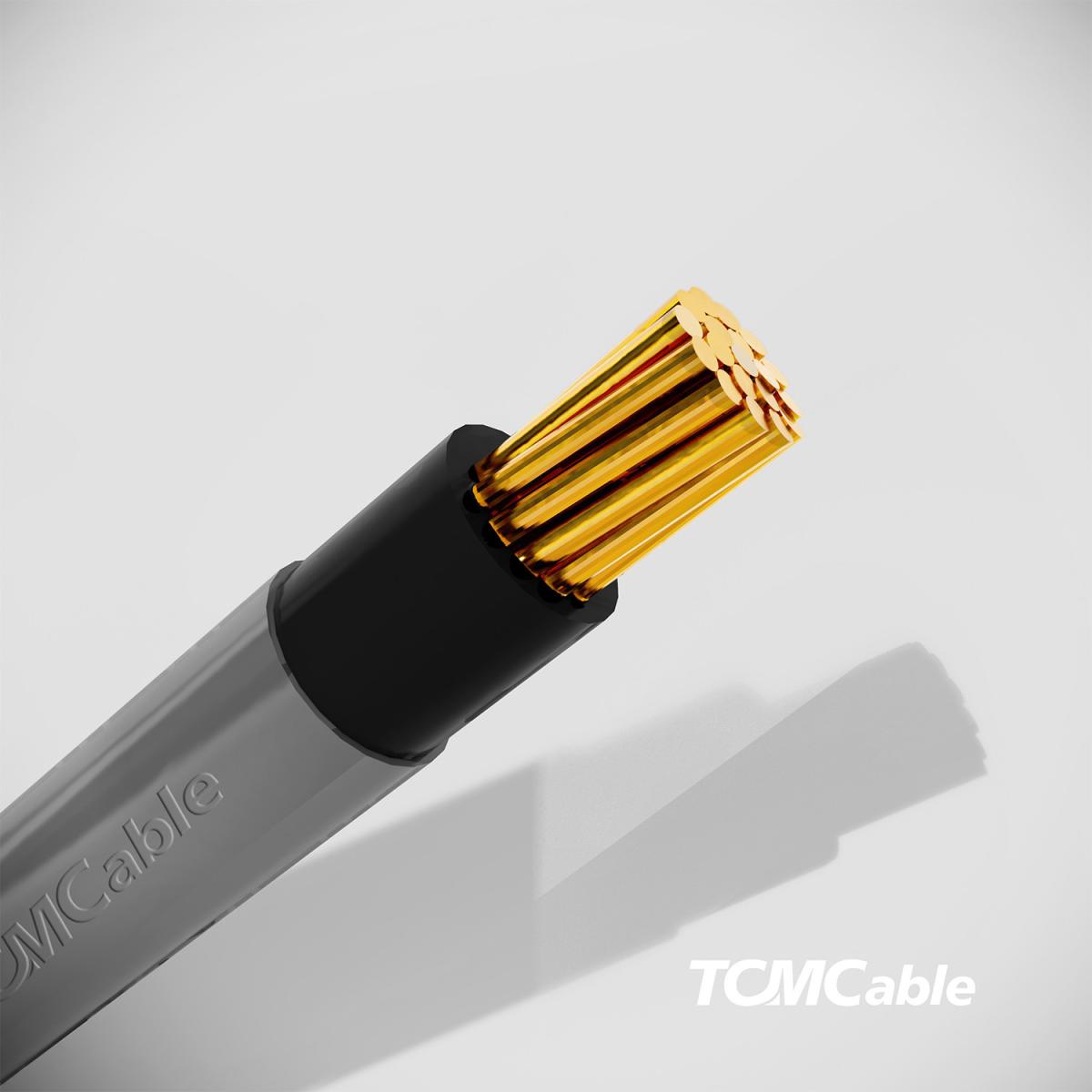

0.6/1kV Single-Core
PVC Insulated, PVC Sheathed Cable

Description: CU/PVC/PVC
Model Code: PP

Application

This cable is primarily used for main power supply.

It can be installed on cable trays, in cable ducts, cable ladders, and cable trunking.

Voltage rating

0.6/1kV

Construction

Plain annealed copper (IEC 60228 Class 2),
PVC insulated, PVC sheathed cable

Insulation colour

Black or Red
Sheath colour

Grey (Other colour upon request)

Specification

IEC 60502-1, IEC 60332-1-2

Operating temperature

70˚C
