Thermocouple Extension Cables
Thermocouple Extension Cables
500V Pair(s), Type EX
XLPE Insulated, Overall Screen, Unarmoured or Armoured, PVC Sheathed Cable
Description: Type EX-XLPE/OS/PVC-UV or Type EX-XLPE/OS/PVC/SWA/PVC-UV
Model Code: Type EX-XOP-UV or Type EX-XOPSP-UV
Application
This cable is used in temperature measurement to convey information from a thermocouple sensor, to the measuring instrument.
Voltage rating
500V

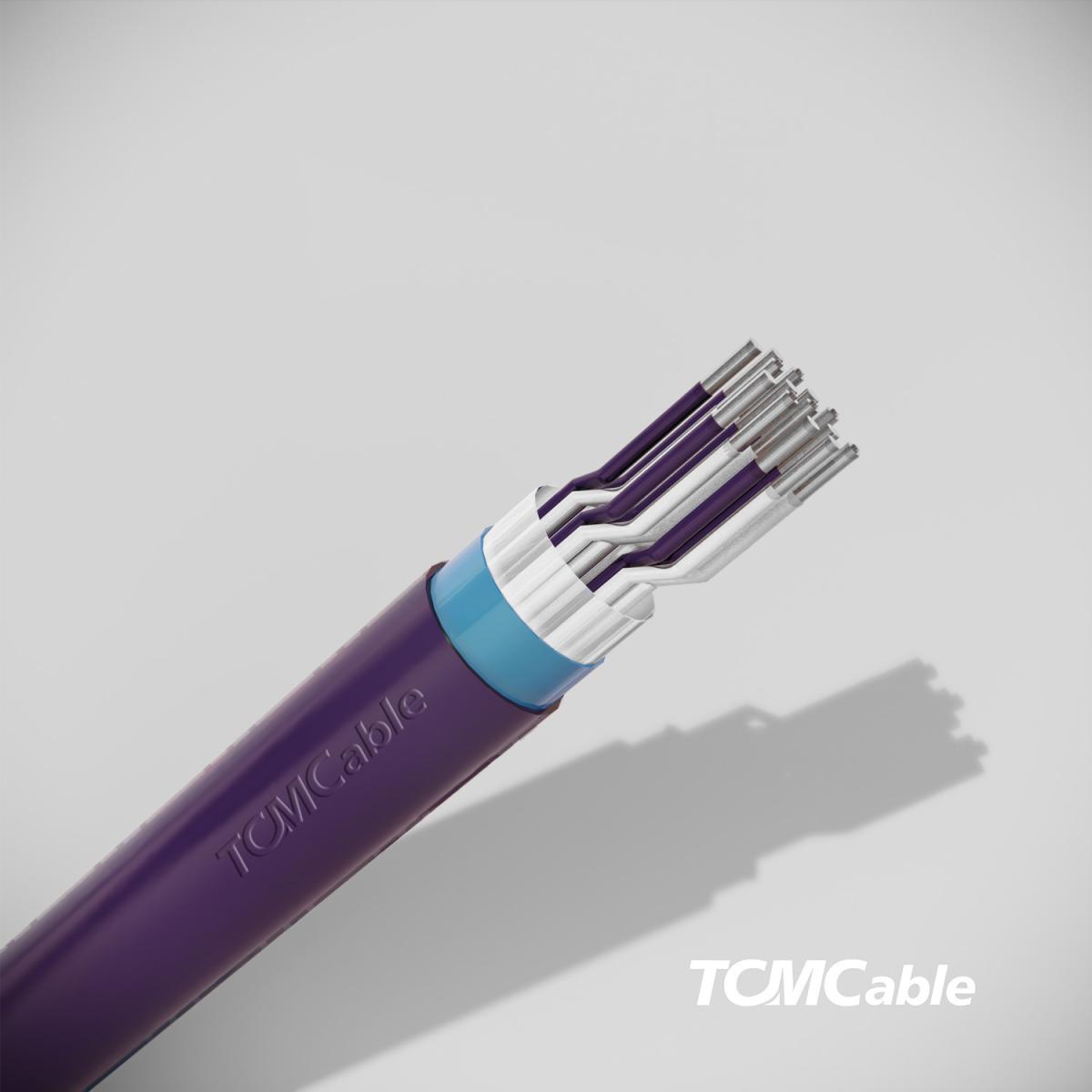

Construction
Solid conductor (Positive: Nickel Chromium /
Negative: Copper Nickel), XLPE insulated, twisted pair(s), overall screen (aluminium/polyester tape with tinned copper drain wire), unarmoured or galvanized steel wire armoured, UV resistant PVC* sheathed cable
Insulation colour
(+) Violet, (-) White (or with numbering)
Sheath colour
Violet
Specification
BS EN 50288-7, IEC 60584-3, IEC 60332-1-2
IEC 60332-3 (upon request)
Operating temperature
90˚C
