Thermocouple Extension Cables
Thermocouple Extension Cables
500V Pair(s), Type TX
XLPE Insulated, Overall Screen, Unarmoured or Armoured, PVC Sheathed Cable
Description: Type TX-XLPE/OS/PVC-UV or Type TX-XLPE/OS/PVC/SWA/PVC-UV
Model Code: Type TX-XOP-UV or Type TX-XOPSP-UV
Application
This cable is used in temperature measurement to convey information from a thermocouple sensor, to the measuring instrument.
Voltage rating
500V
Construction

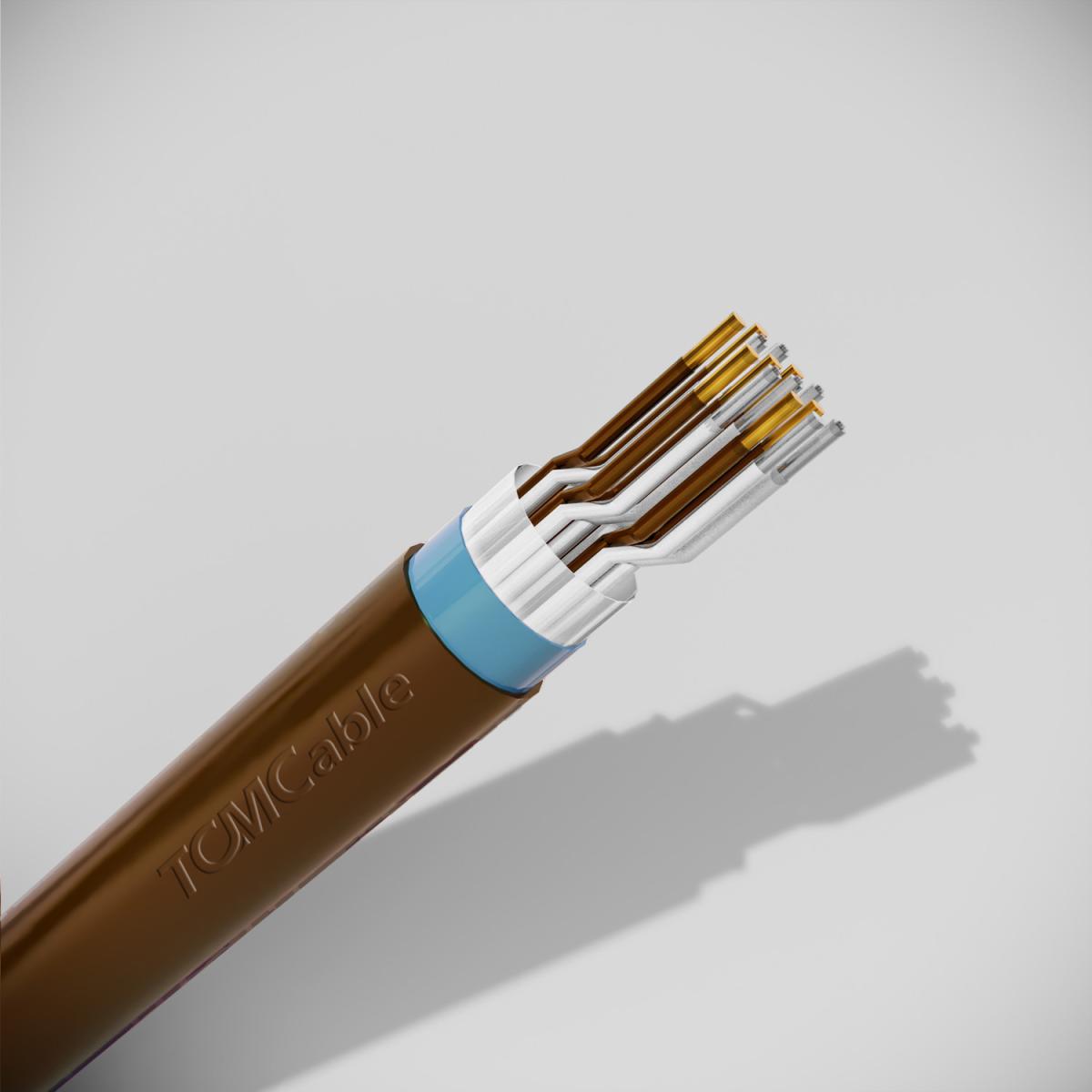

Solid conductor (Positive: Copper / Negative: Copper Nickel), XLPE insulated, twisted pair(s), overall screen (aluminium/polyester tape with tinned copper drain wire), unarmoured or galvanized steel wire armoured, UV resistant PVC* sheathed cable
Insulation colour
(+) Brown, (-) White (or with numbering)
Sheath colour
Brown
Specification
BS EN 50288-7, IEC 60584-3, IEC 60332-1-2
IEC 60332-3 (upon request)
Operating temperature
90˚C
