LSZH Fire Resistant Cables
LSZH Fire Resistant Cables
0.6/1kV Single-Core

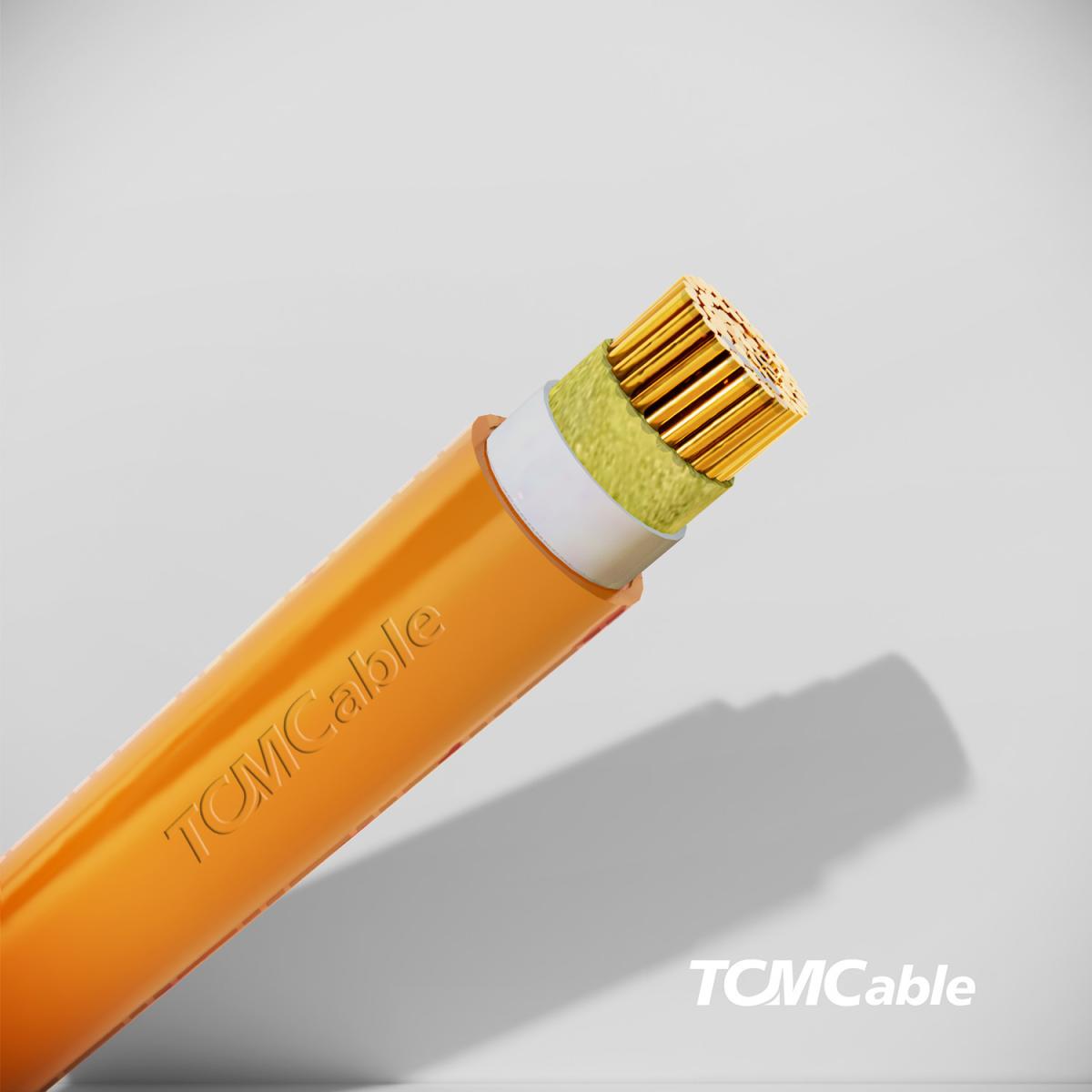

Mica Tape, XLPE Insulated, Unarmoured & Armoured, LSZH Sheathed Cable
Description: CU/MT/XLPE/LSZH-AT-UV or CU/MT/XLPE/LSZH/AWA/LSZH-AT-UV
Model Code: MXL-AT-UV or MXLAL-AT-UV
Application
This cable is designed for areas where the integrity of the electrical circuit is critical in maintaining power supply. Applications include emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, sewage treatment plants, and high-rise buildings.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), mica tape fire barrier, XLPE compound insulated, unarmoured or aluminium wires armoured, anti-termite and UV resistant LSZH compound sheathed cable
Insulation colour
Natural
Sheath colour
Orange (Other colour upon request)
Specification
IEC 60502-1, SS 299, BS 6387, IEC 60331,
IEC 60332-1-2, IEC 60332-3, IEC 60754, IEC 61034-2
Operating temperature
90˚C
