500V Pairs or Triads

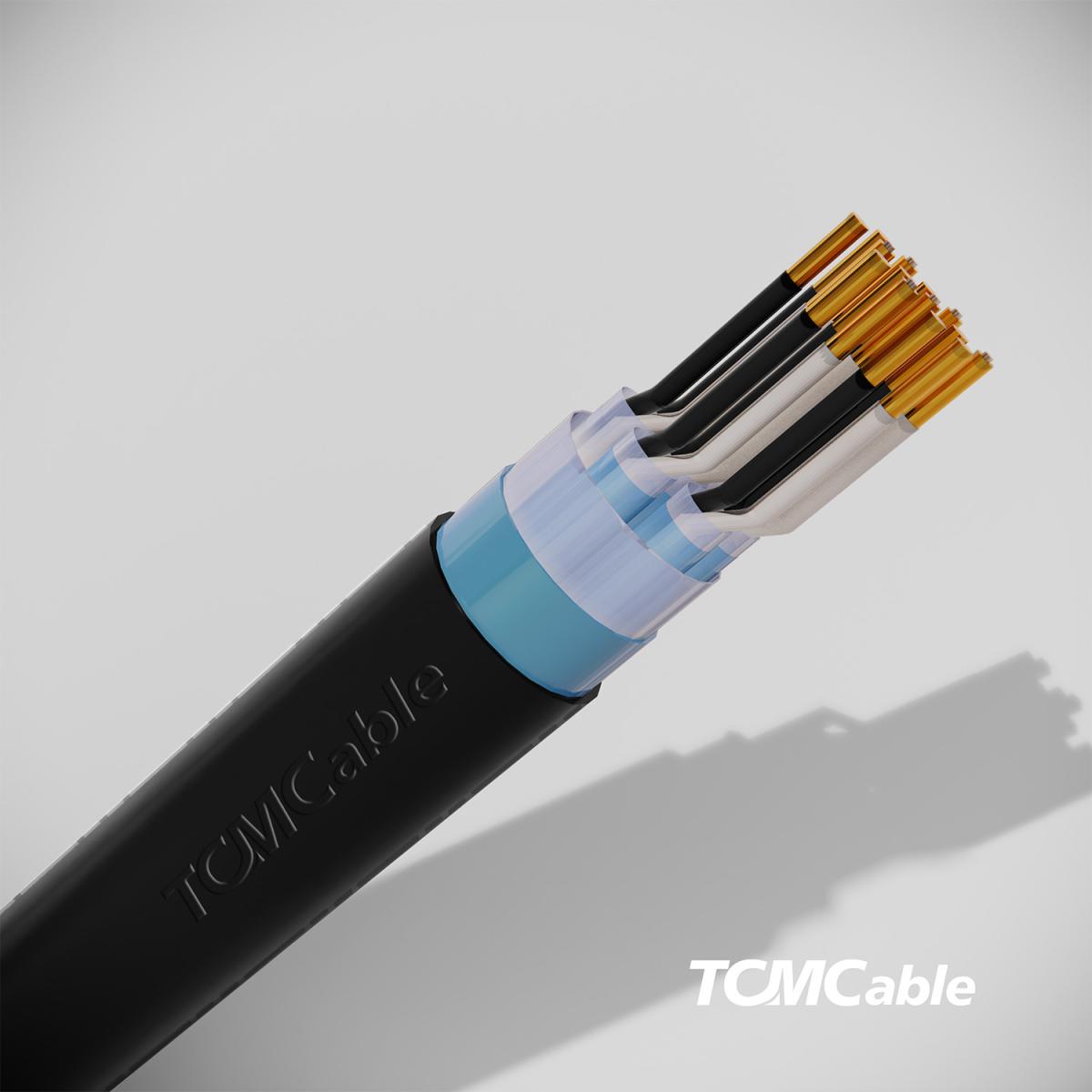

PVC Insulated, Individual & Overall Screen, Unarmoured & Armoured, PVC Sheathed Cable
Description: CU/PVC/ISOS/PVC-UV or CU/PVC/ISOS/PVC/SWA/PVC-UV
Model Code: PIOP-UV or PIOPSP-UV
Application
This cable is used in machines, measuring instruments, and control systems for the transmission of analogue and digital signals.
Voltage rating
500V
Construction
Plain annealed copper (IEC 60228 Class 2), PVC insulated, twisted pairs or triads, individual and overall screen (aluminium/polyester tape with tinned copper drain wire), unarmoured or galvanized steel wire armoured, UV resistant PVC sheathed cable
Insulation colour
Pairs : Black, White (with numbering)
Triads : Red, Black, White (with numbering)
Sheath colour
Black (other colour upon request)
Blue (for intrinsically safe system upon request)
Specification
BS EN 50288-7, IEC 60332-1-2
IEC 60332-3 (upon request)
Operating temperature
70˚C
