LSZH Flame Retardant Cables
LSZH Flame Retardant Cables
0.6/1kV Single-Core

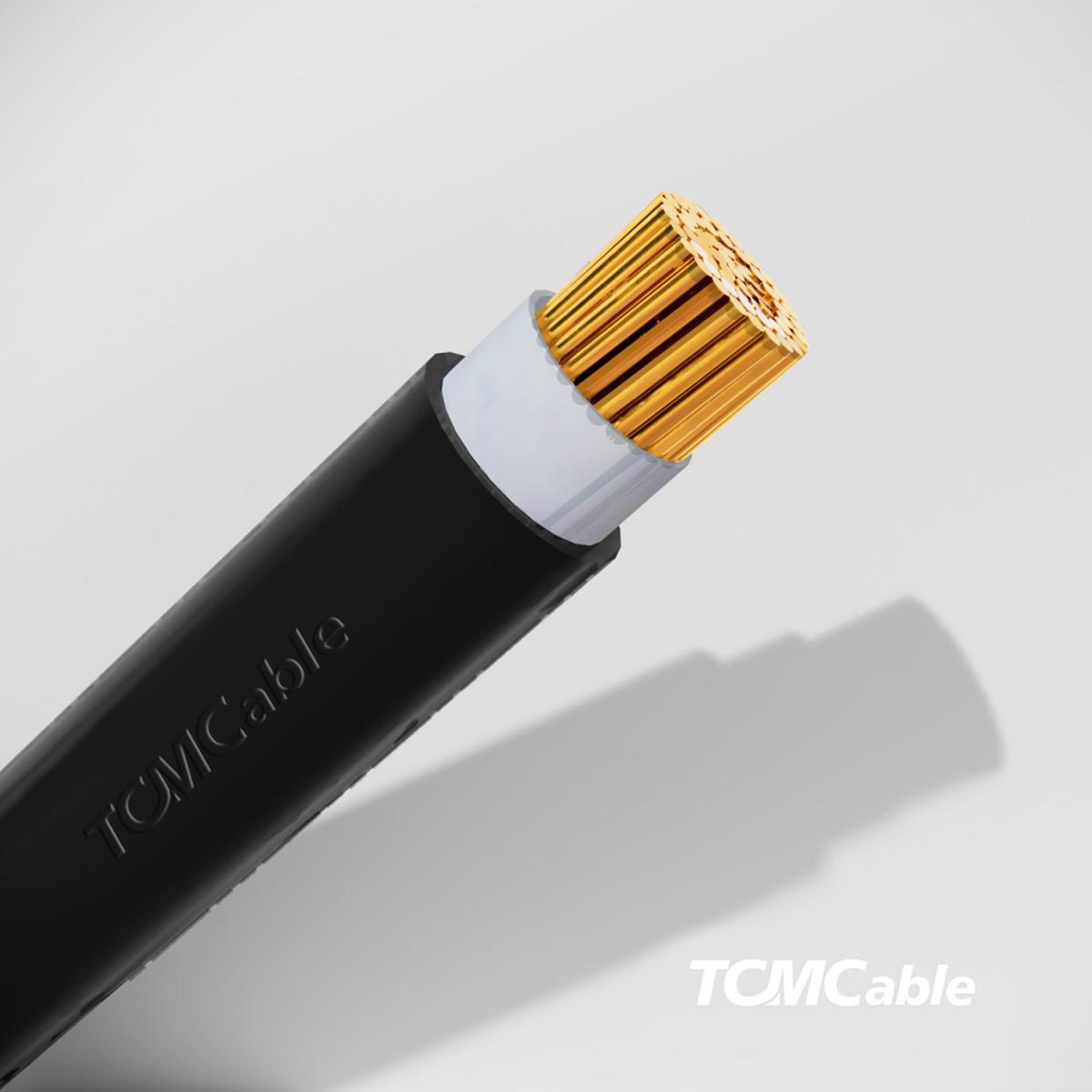

XLPE Insulated, Unarmoured & Armoured, LSZH Sheathed Cable
Description: CU/XLPE/LSZH-AT-UV or CU/XLPE/LSZH/AWA/LSZH-AT-UV
Model Code: XL-AT-UV or XLAL-AT-UV
Application
This cable is mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), XLPE compound insulated, unarmoured or aluminium wires armoured, anti-termite and UV resistant LSZH compound sheathed cable
Insulation colour
Natural
Sheath colour
Black (Other colour upon request)
Specification
IEC 60502-1, BS 6724, IEC 60332-1-2, IEC 60332-3,
IEC 60754, IEC 61034-2
Operating temperature
90˚C
