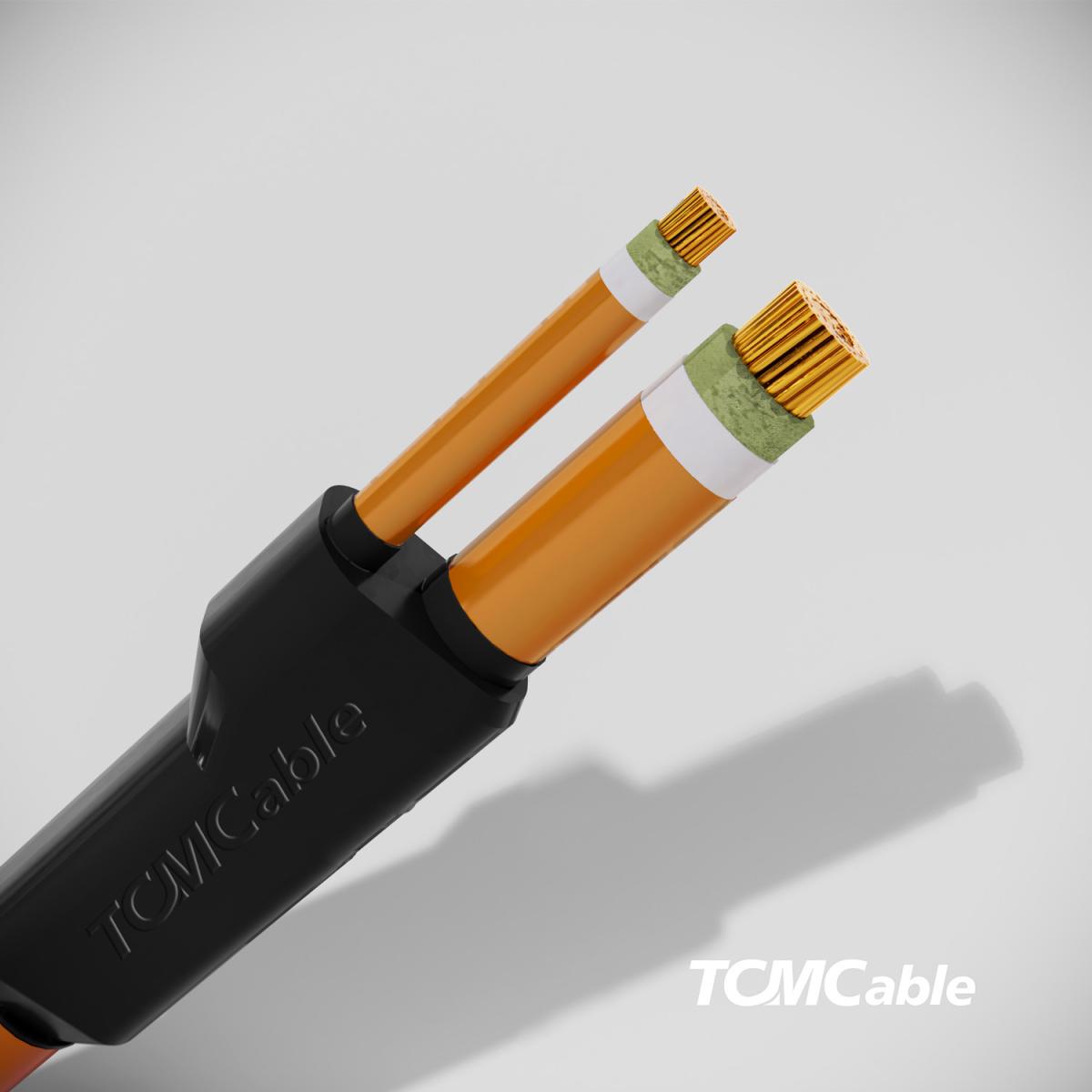

LSZH Fire Resistant Prefabricated Branch Cables
LSZH Fire Resistant Prefabricated Branch Cables
0.6/1kV Single-Core
Mica Tape, XLPE Insulated, Unarmoured, LSZH Sheathed Cable
Description: CU/MT/XLPE/LSZH-AT-UV
Model Code: MXL-AT-UV
Application
This cable is used in power supply and distribution system for high-rise buildings, hospitals, hotels, and airports where the integrity of the electrical circuit is critical during a fire event.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), mica tape fire barrier, XLPE insulated, unarmoured, anti-termite and UV resistant LSZH compound sheathed cable
Insulation colour
Natural
Sheath colour
Orange
Specification
IEC 60502-1, SS 299, BS 6387, IEC 60331,
IEC 60332-1-2, IEC 60332-3, IEC 60754, IEC 61034-2
Operating temperature
90˚C
