XLPE Insulated Cables
XLPE Insulated Cables
0.6/1kV 2-Core ~ 5-Core

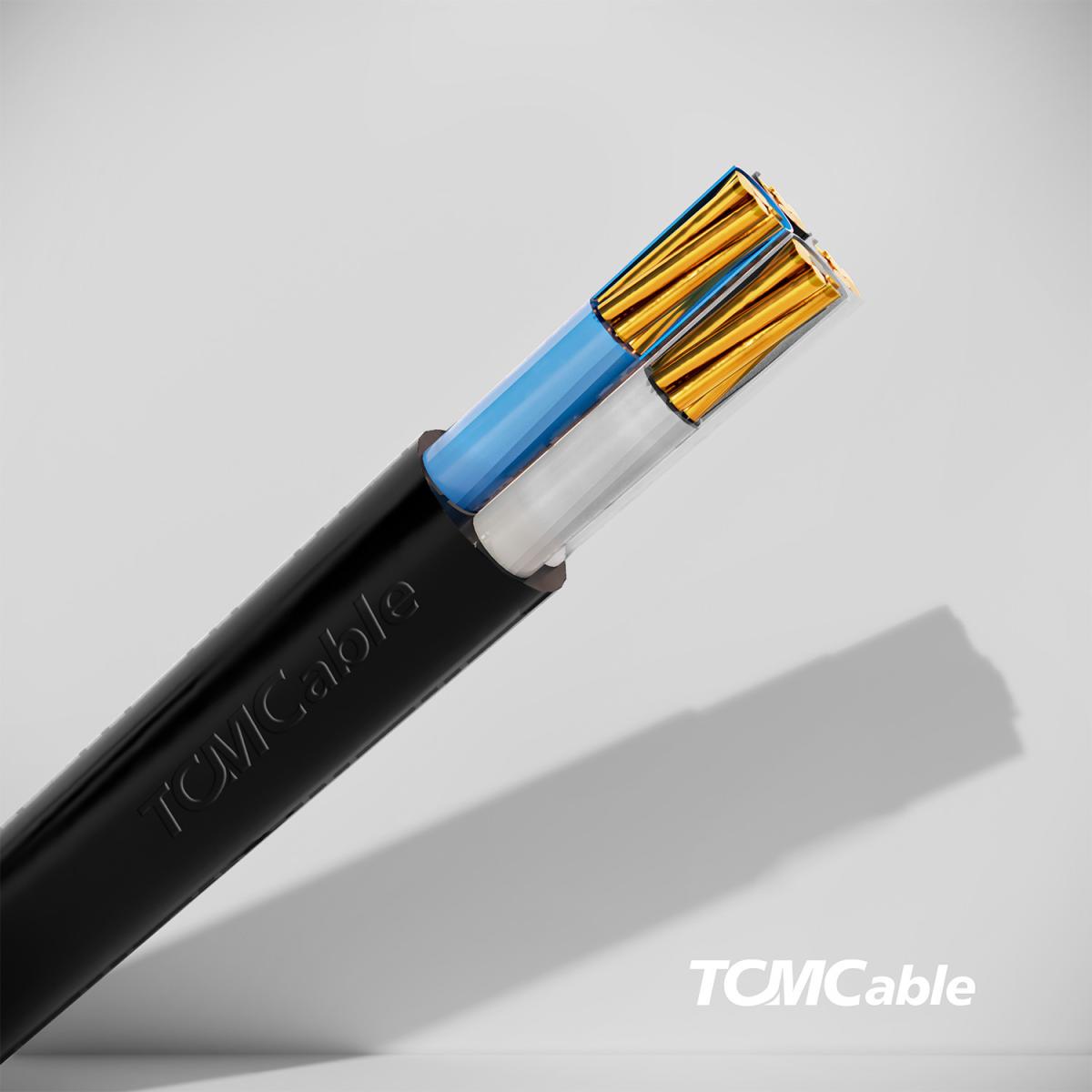

XLPE Insulated, Unarmoured & Armoured, PVC Sheathed Cable
Description: CU/XLPE/PVC or CU/XLPE/PVC/SWA/PVC-AT
Model Code: XP or XPSP-AT
Application
This cable is primarily used for main power supply.
It can be installed in cable ducts, cable trunking, on cable trays, and cable ladders.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), XLPE insulated, unarmoured or galvanized steel wires armoured, PVC or anti-termite PVC (for armoured cable only) compound sheathed cable
Insulation colour
2-Core: Brown, Blue;
3-Core: Brown, Black, Grey; Brown, Blue, Green/Yellow;
4-Core: Brown, Black, Grey, Blue; Brown, Black, Grey, Green/Yellow;
5-Core: Brown, Black, Grey, Blue, Green/Yellow;(Other colour upon request)
Sheath colour
Black
Specification
IEC 60502-1, IEC 60332-1-2
Operating temperature
90˚C
