XLPE Insulated Cables
XLPE Insulated Cables
0.6/1kV Single-Core

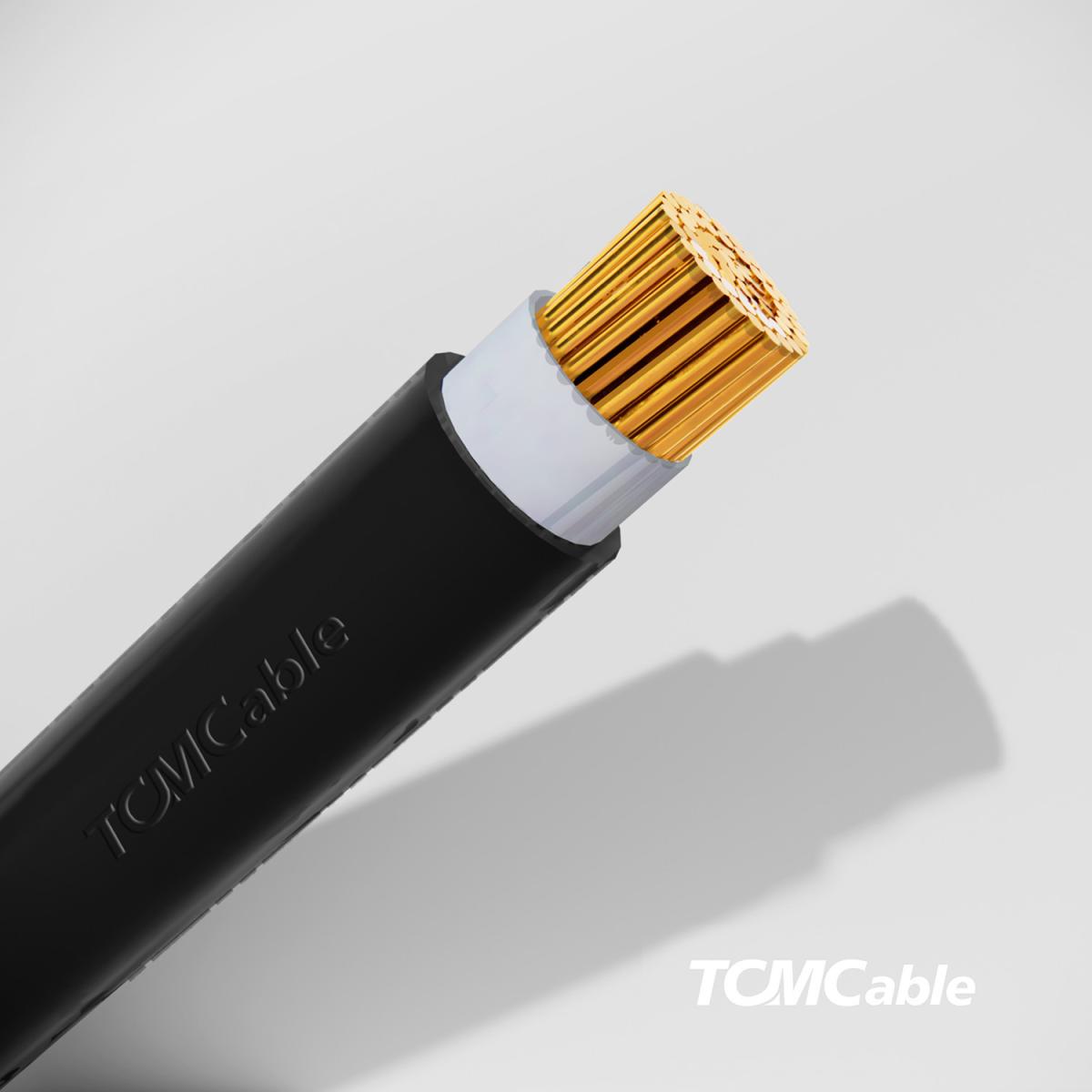

XLPE Insulated, Unarmoured & Armoured, PVC Sheathed Cable
Description: CU/XLPE/PVC or CU/XLPE/PVC/AWA/PVC-AT
Model Code: XP or XPAP-AT
Application
This cable is primarily used for main power supply.
It can be installed on cable trays, in cable ducts, cable ladders, cable trunking, and switch gears.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), XLPE insulated, unarmoured or aluminium wires armoured, PVC or anti-termite PVC (for armoured cable only) compound sheathed cable
Insulation colour
Natural
Sheath colour
Black
Specification
IEC 60502-1, IEC 60332-1-2
Operating temperature
90˚C
