LSZH Fire Resistant Variable Speed Drive (VSD) Cables
LSZH Fire Resistant Variable Speed Drive (VSD) Cables
0.6/1kV 3-Phase Core + 3-Earth Core

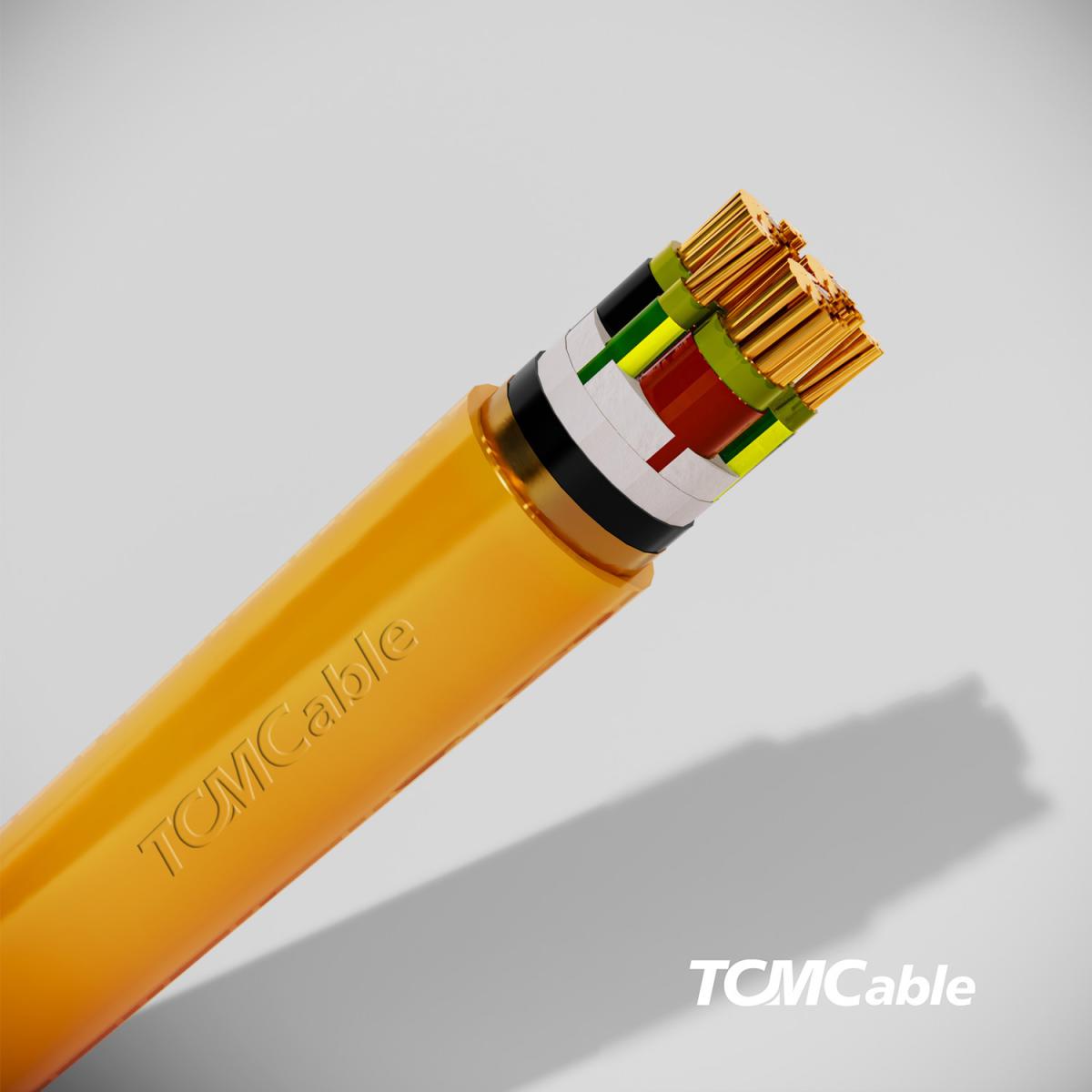

Mica Tape, XLPE Insulated, Copper Tape Screen, Unarmoured & Armoured, LSZH Sheathed Cable
Description: CU/MT/XLPE/LSZH/CTS/LSZH-AT-UV or CU/MT/XLPE/LSZH/CTS/LSZH/SWA/LSZH-AT-UV
Model Code: MXLCTL-AT-UV or MXLCTLSL-AT-UV
Application
This cable is designed for areas where the integrity of the electrical circuit is critical in maintaining power supply. It also provides enhanced protection against electrical noise and maintains stable electrical performance, ensuring reliable system uptime in harsh environments where high-frequency currents are present.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), mica tape fire barrier, XLPE insulated, 3-earth cores disposed in interstices of the phase cores, copper tape screen, unarmoured or galvanized steel wires armoured, anti-termite and UV resistant LSZH compound sheathed cable
Insulation colour
Brown, Black, Grey, Green/Yellow
(other colour upon request)
Sheath colour
Orange (other colour upon request)
Specification
IEC 60502-1, SS 299, BS 6387, IEC 60331,IEC 60332-1-2, IEC 60332-3, IEC 60754, IEC 61034-2
Operating temperature
90˚C
