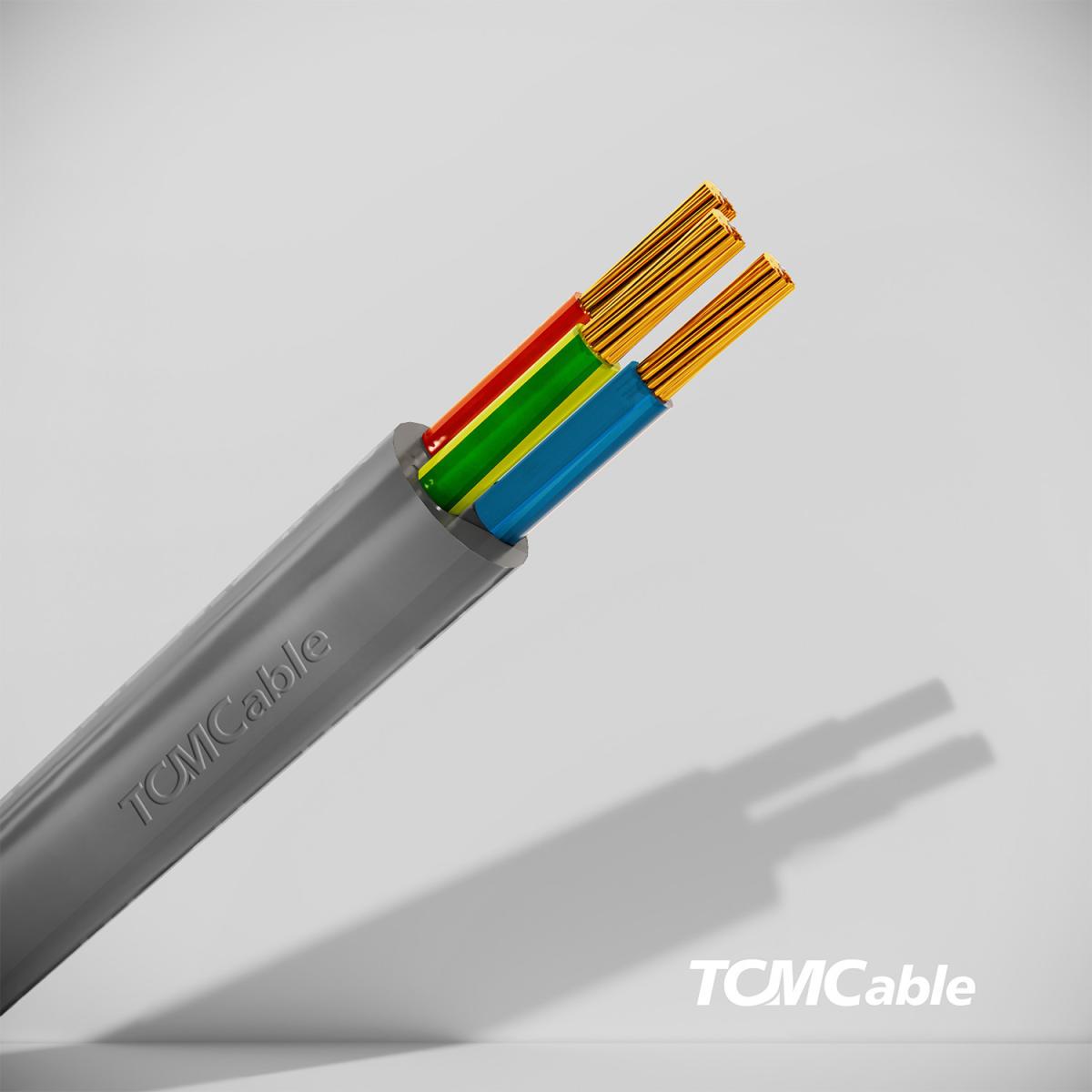

PVC Insulated Cables
PVC Insulated Cables
0.6/1kV 2-Core ~ 4-Core
PVC Insulated, PVC Sheathed CableDescription: CU/PVC/PVC
Model Code: PP
Application
This cable is primarily used for main power supply.
It can be installed on cable trays, cable ladders, in cable ducts, and cable trunking.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2),
PVC insulated, PVC sheathed cable
Insulation colour
2-Core: Brown, Blue;3-Core: Brown, Black, Grey; Brown, Blue, Green/Yellow;4-Core: Brown, Black, Grey, Blue; Brown, Black, Grey, Green/Yellow;(Other colour upon request)
Sheath colour
Black
Specification
IEC 60502-1, IEC 60332-1-2
Operating temperature
70˚C
