PVC Insulated Cables
PVC Insulated Cables

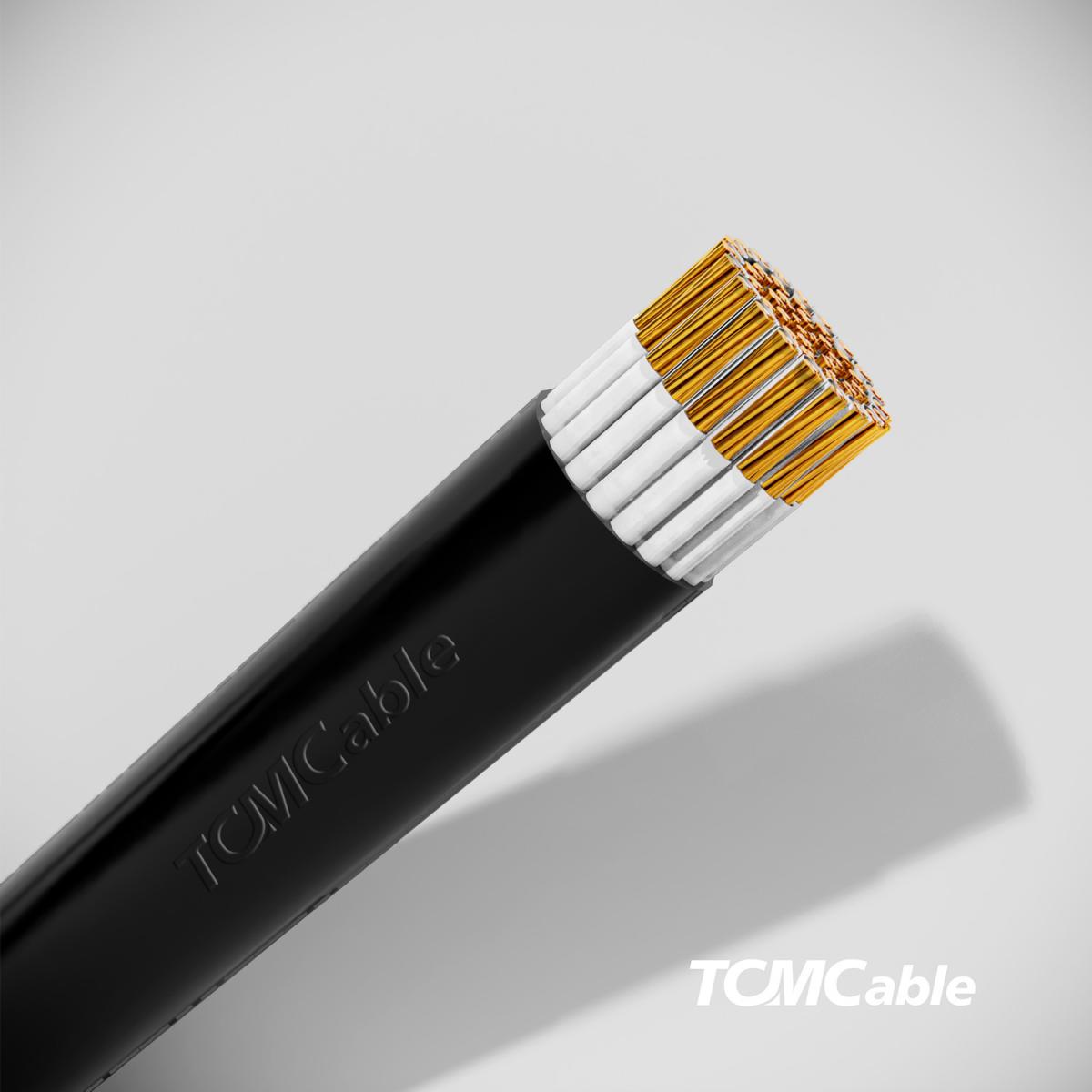

0.6/1kV Multi-Core
PVC Insulated, Unarmoured & Armoured, PVC Sheathed Auxiliary Cable
Description: CU/PVC/PVC or CU/PVC/PVC/SWA/PVC-AT
Model Code: PP or PPSP-AT
Application
This auxiliary cable is used in supervisory electrical equipment and station control circuits, as well as in light, ordinary, or heavy duty industry where power distribution device is needed to transmit control signals or measure signal operations.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2),
PVC insulated, unarmoured or galvanized steel wires armoured, PVC or anti-termite PVC (for armoured cable only) sheathed cable
Insulation colour
White (With black numbering)
Sheath colour
Black
Specification
IEC 60502-1, IEC 60332-1-2
Operating temperature
70˚C
