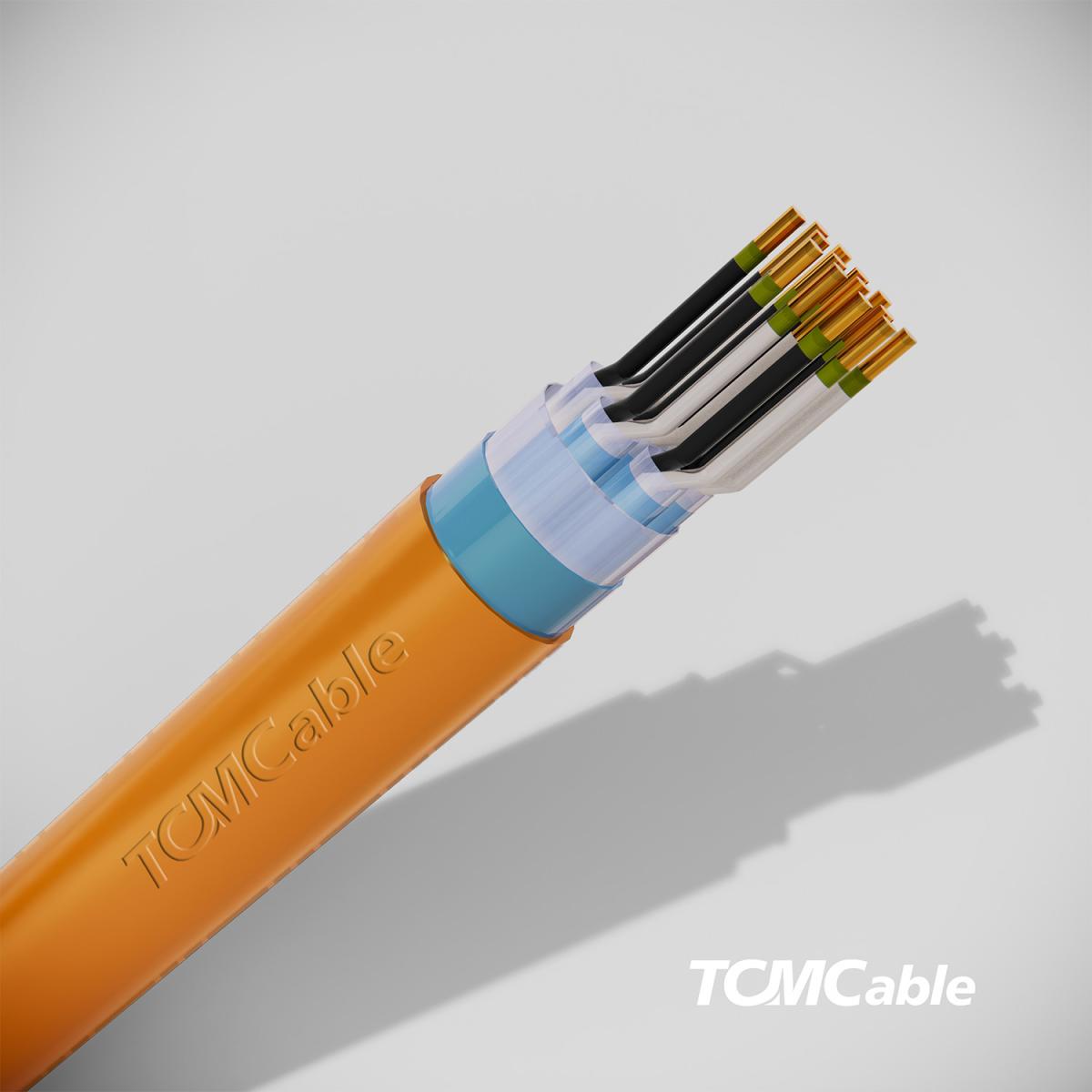

LSZH Fire Resistant Instrumentation Cables
LSZH Fire Resistant Instrumentation Cables
500V Pairs or Triads
Mica Tape, XLPE Insulated, Individual & Overall Screen, Unarmoured & Armoured, LSZH Sheathed Cable
Description: CU/MT/XLPE/ISOS/LSZH-AT-UV or CU/MT/XLPE/ISOS/LSZH/SWA/LSZH-AT-UV
Model Code: MXIOL-AT-UV or MXIOLSL-AT-UV
Application
This cable is intended for use in manufacturing and processing application for emergency services such as fire detection, fire alarm, andPA systems, where signal has to be assured in the event of a fire.
Voltage rating
500V
Construction
Plain annealed copper (IEC 60228 Class 2), mica tape fire barrier, XLPE insulated, individual and overall screen (aluminium/polyester tape with tinned copper drain wire), unarmoured or galvanized steel wire armoured, anti-termite and UV resistant LSZH sheathed cable
Insulation colour
Pairs : Black, White (with numbering)
Triads : Red, Black, White (with numbering)
Sheath colour
Orange (other colour upon request)
Blue (for intrinsically safe system upon request)
Specification
BS EN 50288-7, SS 299-1:1998, BS 6387,
IEC 60331-21, IEC 60332-1-2, IEC 60332-3, IEC 60754, IEC 61034-2
Operating temperature
90˚C
