LSZH Flame Retardant Cables
LSZH Flame Retardant Cables

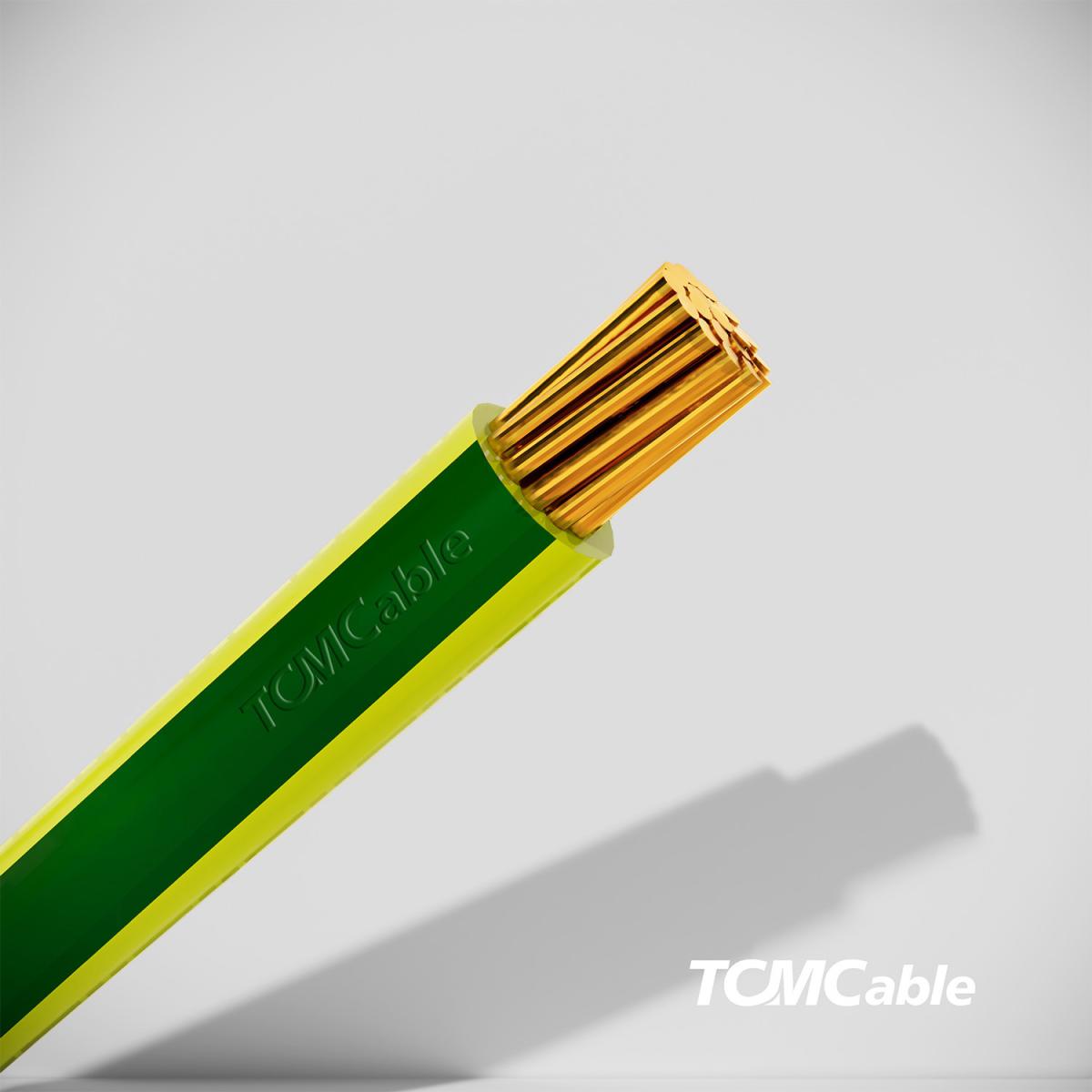

0.6/1kV Single-Core
LSZH Insulated, Non-Sheathed CableDescription: CU/LSZH-AT-UV
Model Code: LSZH-AT-UV
Application
This cable is mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hospitals, and high-rise buildings. Suitable for fixed protected installation.
Voltage rating
0.6/1kV
Construction
Plain annealed copper (IEC 60228 Class 2), anti-termite and UV resistant cross-linked polyolefin EI 5 compound insulated cable
Insulation colour
Brown, Black, Grey, Blue, Green/Yellow
(Other colour upon request)
Specification
BS EN 50525-3-41, IEC 60332-1-2, IEC 60332-3,IEC 60754, IEC 61034-2
Operating temperature
90˚C
