Medium Voltage Cables
Medium Voltage Cables
3.6/6(7.2)kV Single-Core
XLPE Insulated, Unarmoured & Armoured, PVC Sheathed Cable
Description: AL/XLPE/CTS/PVC or AL/XLPE/CTS/PVC/AWA/PVC-AT or AL/XLPE/CTS/PVC/DATA/PVC-AT
Application
This is an electric power distribution network cable typically used as primary supply to commercial, industrial and urban residential networks
Voltage rating
3.6/6(7.2)kV, 3.8/6.6(7.2)kV
Construction

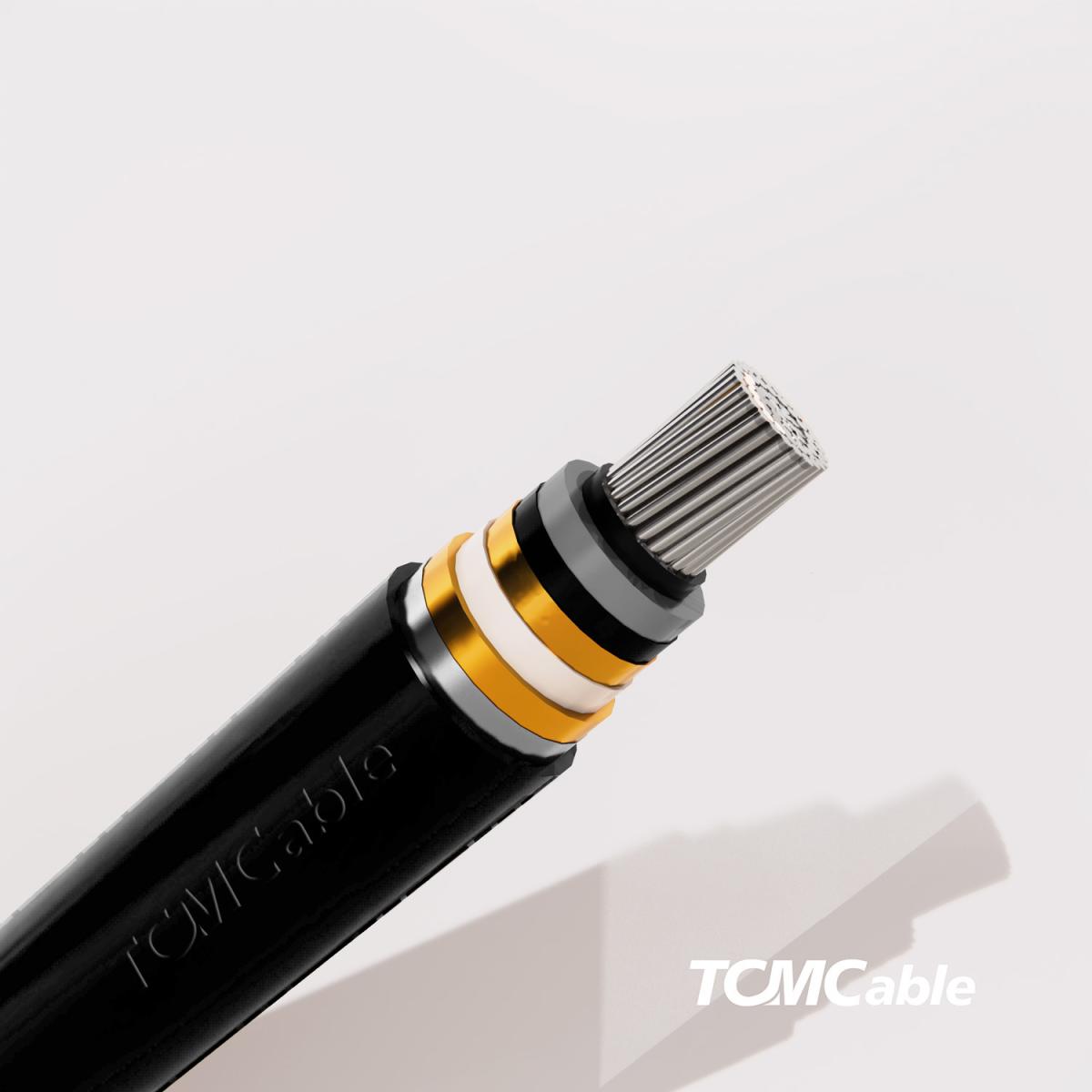

Circular compacted stranded aluminium conductor, cross linked semi-conducting compound, XLPE insulated, cross linked semi-conducting compound bonded or strippable screened, plain annealed copper tape screen, aluminium wires or double aluminium tape armoured and extruded PVC or anti-termite PVC compound sheath
Specification
IEC60502-2, BS6622
Operating temperature
90˚C
