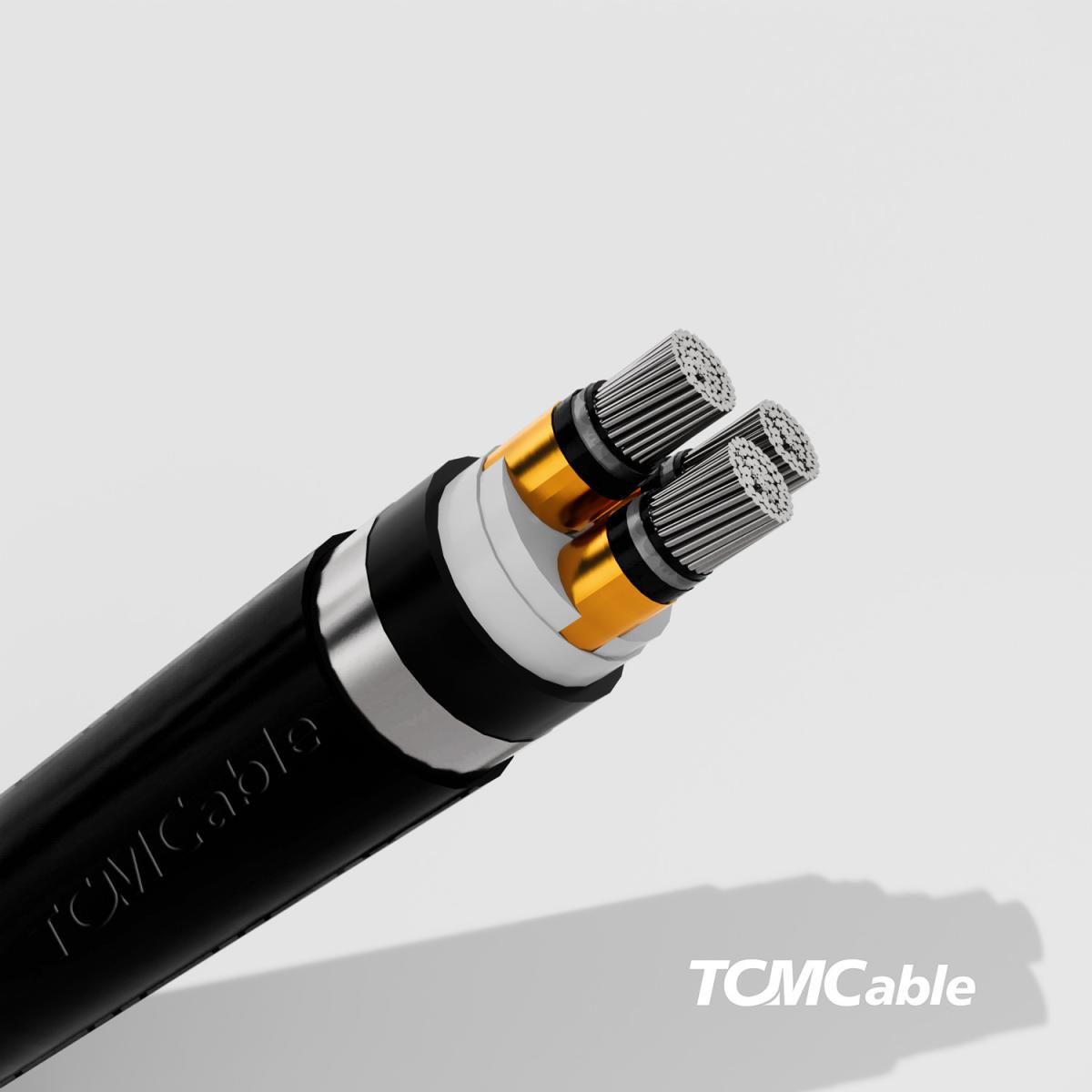

3..6/6(7.2)kV 3-Core
XLPE Insulated, Unarmoured & Armoured, PVC Sheathed Cable
Description: CU/XLPE/CTS/PVC or CU/XLPE/CTS/PVC/SWA/PVC-AT or CU/XLPE/CTS/PVC/DSTA/PVC-AT
Application
This is an electric power distribution network cable typically used as primary supply to commercial, industrial and urban residential networks
Voltage rating
3..6/6(7.2)kV, 3..8/6.6(7.2)kV
Construction
Circular compacted stranded copper conductor, cross linked semi-conducting compound, XLPE insulated, cross linked semi-conducting compound bonded or strippable screened, plain annealed copper tape screen, galvanised steel wires or double steel tape armoured and extruded PVC or anti-termite PVC compound sheath
Specification
IEC60502-2, BS6622
Operating temperature
90˚C
