Pilot Cables
Pilot Cables
0.6/1(1.2)kV Multi-Pair
PE Insulated, Armoured, PVC Sheathed Cable
Description: CU/PE/CTS/PE/DSTA/PVC-AT
Application
Pilot cables associated with power distribution and transmission system are used for control, protection, signaling, speech and data transmission purposes. Such systems are mainly operated by the electricity providers
Voltage rating
0.6/1(1.2)KV
15KV (Max. induced voltage)

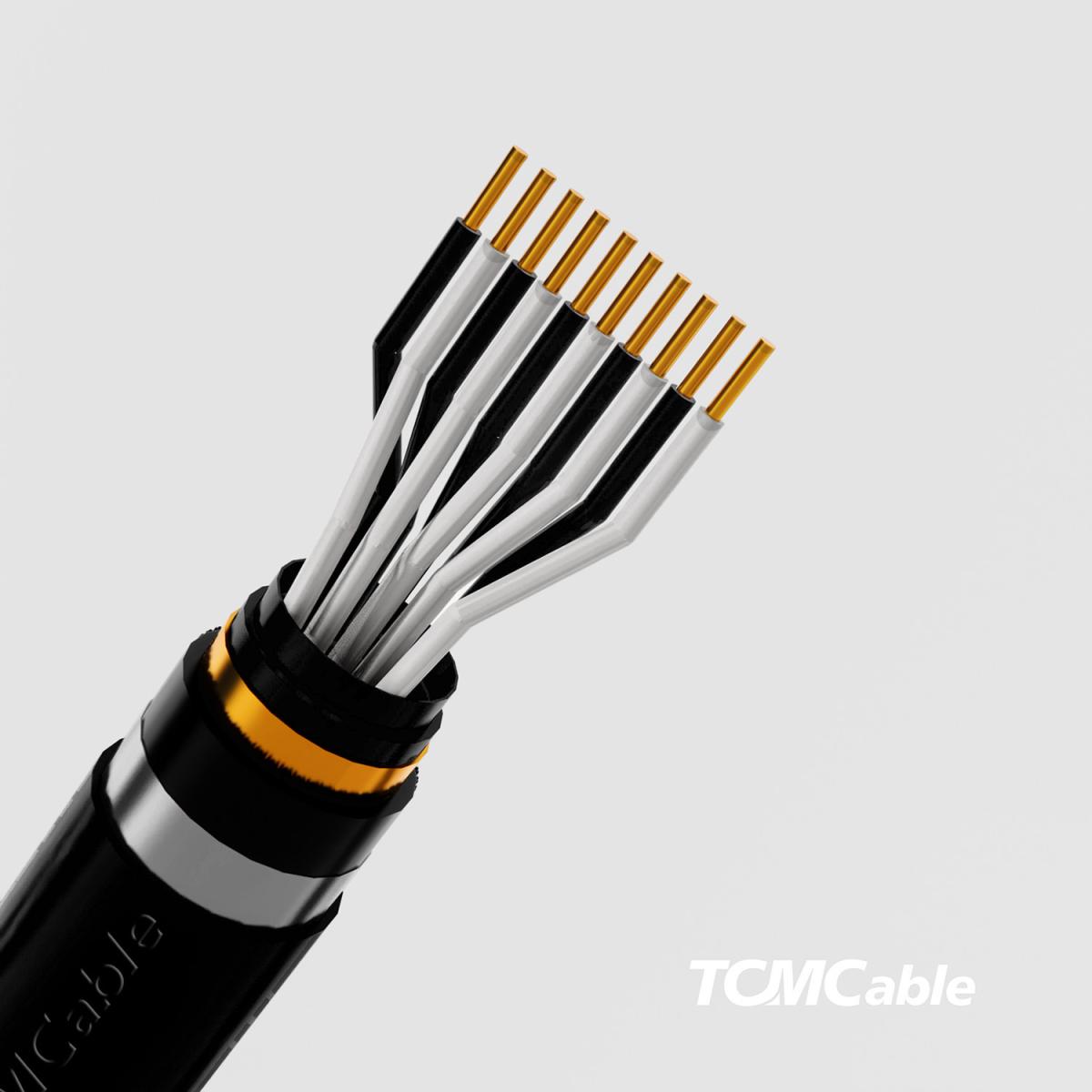

Construction
Annealed plain copper solid (Class 1) conductor, solid polyethylene insulated, twisted pairs, non-hygroscopic and non-wicking dielectric material and polyethylene tape applied over the cable assembly, copper tape screened, polyethylene bedding, double steel tape armoured and extruded PVC or anti-termite PVC compound sheath
Insulation colour
Black, White with numbering (For colour coded cables, please refer to table 32 on page 48)
Specification
IEC60502-1
Operating temperature
70˚C
