Medium Voltage Cables
Medium Voltage Cables

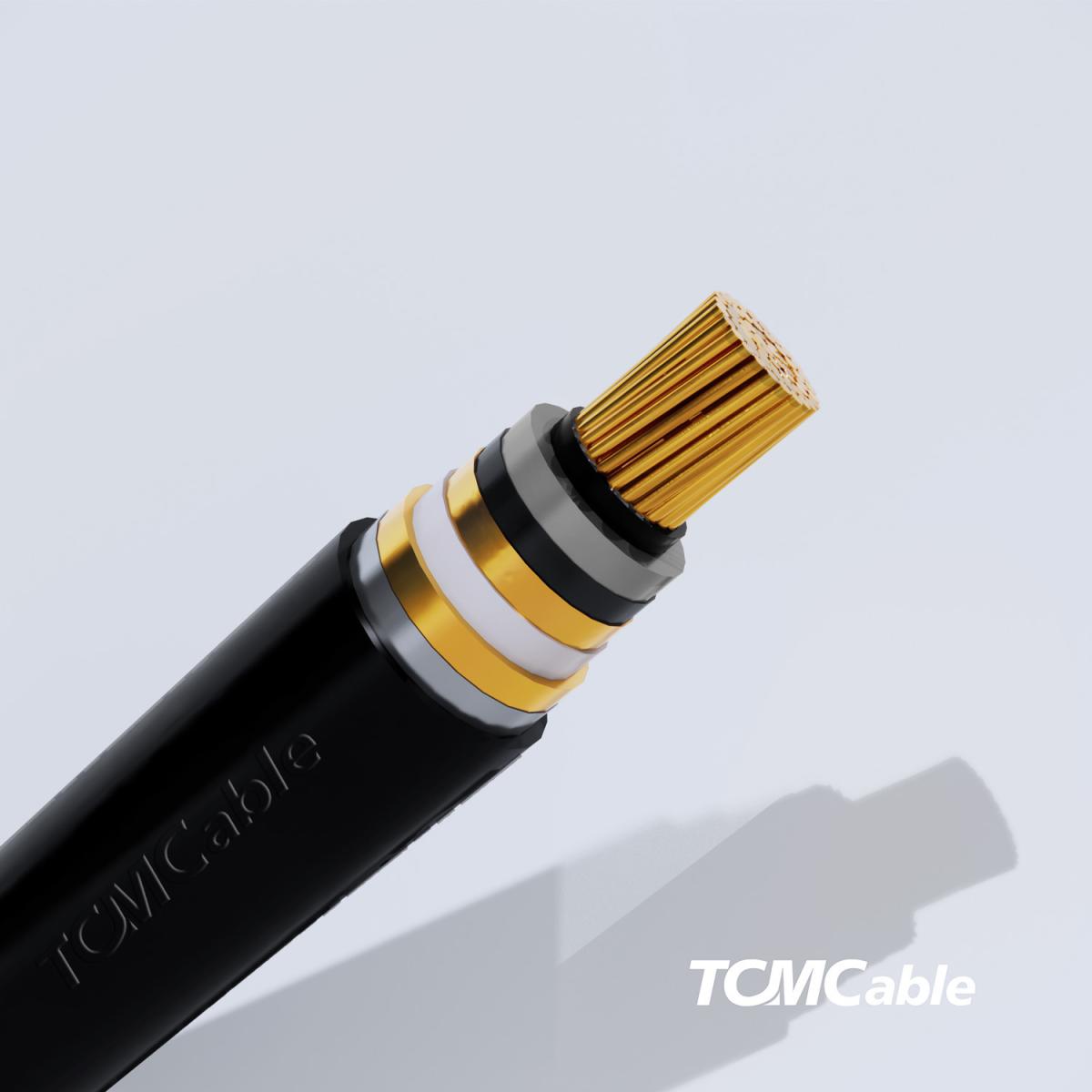

6/10(12)kV Single-Core
XLPE Insulated, Unarmoured & Armoured, PVC Sheathed Cable
Description: CU/XLPE/CTS/PVC or CU/XLPE/CTS/PVC/AWA/PVC-AT or CU/XLPE/CTS/PVC/DATA/PVC-AT
Application
This is an electric power distribution network cable typically used as primary supply to commercial, industrial and urban residential networks
Voltage rating
6/10(12)kV, 6.35/11(12)kV
Construction
Circular compacted stranded copper conductor, cross linked semi-conducting compound, XLPE insulated, cross linked semi-conducting compound bonded or strippable screened, plain annealed copper tape screen, aluminium wires or double aluminium tape armoured and extruded PVC or anti-termite PVC compound sheath
Specification
IEC60502-2, BS6622
Operating temperature
90˚C
